VLAN tags are used in Ethernet frames to identify and differentiate traffic between multiple VLANs. They are especially important for devices like switches that handle multiple VLANs on the same physical link.
Step-by-Step Breakdown:
VLAN Tag Contents:
VLAN ID: The tag contains a 12-bit VLAN ID field that identifies the VLAN to which the frame belongs.
Priority: The tag also includes a 3-bit priority field (also known as 802.1p priority) used for QoS (Quality of Service) to prioritize traffic.
Trunk Ports and VLAN Tagging:
Trunk Ports are used to carry traffic for multiple VLANs across a single link. These interfaces insert (tag) VLAN identifiers into frames when they leave the switch and remove (untag) them when frames enter the switch.
Access Ports:
VLAN tags are typically not used on access ports (ports that connect to end devices) since those ports are configured to be part of a single VLAN, and the traffic doesn’t need VLAN tags.
Juniper Reference:
VLAN Tagging: Juniper switches support VLAN tagging and ensure that frames are tagged or untagged as they traverse trunk or access ports, respectively.

To configure aggregated Ethernet (AE) interfaces on a Junos device, the configuration is done under the [edit chassis] hierarchy.
Step-by-Step Breakdown:
Chassis Configuration:
The chassis configuration is responsible for enabling the hardware to support Link Aggregation Groups (LAGs), allowing multiple physical interfaces to be bundled into a single logical interface for load balancing and redundancy.
Command Example:
set chassis aggregated-devices ethernet device-count <number>
This command enables a specific number of aggregated Ethernet interfaces on the device.
Juniper
Reference: LAG Configuration in Junos: The chassis hierarchy is used to allocate and manage hardware resources for aggregated Ethernet interfaces in Juniper devices.

In the exhibit, BGP is configured with local AS 65101 and a neighbor at 172.16.1.1 in peer AS 65201. This setup involves two different Autonomous Systems (AS), indicating an External BGP (EBGP) configuration.
Step-by-Step Breakdown:
EBGP vs. IBGP:
EBGP is used between routers in different ASes. In this case, the local AS is 65101 and the peer AS is 65201, meaning the BGP session is EBGP.
IBGP is used between routers within the same AS, which is not applicable here as the AS numbers are different.
BGP Group Configuration:
The configuration does not require a type external parameter because Junos OS automatically recognizes the session as EBGP when the local and peer AS numbers are different.
The BGP session will operate as EBGP, and the configuration will commit successfully.
Juniper Reference:
BGP Configuration: In Juniper, EBGP is automatically recognized when the local and peer AS numbers differ, without needing to specify type external.

An IP fabric is a network topology designed to provide a scalable, low-latency architecture that is typically implemented in modern data centers. It uses spine and leaf switches and enables efficient traffic load sharing across the network.
Step-by-Step Breakdown:
Spine-Leaf Architecture:
Leaf Devices: These switches connect to servers and edge devices within the data center. Each leaf switch connects to every spine switch.
Spine Devices: These high-performance switches interconnect all the leaf switches. There are no direct connections between leaf switches or spine switches. This architecture ensures that any two endpoints within the fabric are only one hop away from each other, minimizing latency.
Traffic Load Sharing:
An IP fabric leverages Equal-Cost Multipath (ECMP) to distribute traffic evenly across all available paths between leaf and spine switches, providing effective load balancing. This ensures that no single link becomes a bottleneck and that traffic is distributed efficiently across the network. Juniper Reference: Juniper provides QFX Series switches optimized for IP fabric topologies, allowing for scalable deployments in modern data centers.
EVPN-VXLAN: Often used in IP fabrics to extend Layer 2 services across the fabric with Layer 3 underlay, enabling both efficient routing and bridging.

The source MAC address in the Ethernet header is used to populate the bridging table (also called the MAC address table) on a switch. When a frame arrives at a switch, the switch examines the source MAC address and records it along with the ingress port in its MAC address table.
Step-by-Step Breakdown:
Learning Process:
When an Ethernet frame arrives on a switch port, the switch looks at the source MAC address and adds this MAC address to the MAC table along with the port it was received on. This process is called MAC learning.
Purpose:
The switch uses this information to determine the correct port to send frames destined for that MAC address in future transmissions, thus ensuring efficient Layer 2 forwarding. Juniper Reference: Ethernet Switching: Juniper switches use source MAC addresses to build and maintain the MAC address table, which is essential for Layer 2 switching.

Graceful Restart (GR) is a feature that allows a router to maintain forwarding even when the routing process (e.g., the rpd process in Junos) is restarting, minimizing disruption to the network.
Step-by-Step Breakdown:
Graceful Restart Function:
During a GR event, the forwarding plane continues to forward packets based on existing routes, while the control plane (rpd process) is restarting. This prevents traffic loss and maintains routing stability. Minimizing Disruptions:
GR is particularly useful in ensuring continuous packet forwarding during software upgrades or routing protocol process restarts.
Juniper
Reference: Graceful Restart in Junos: GR ensures high availability by maintaining forwarding continuity during control plane restarts, enhancing network reliability.

In IBGP (Internal Border Gateway Protocol), all routers within the same AS (Autonomous System) must have a logical full-mesh topology. This means that every IBGP router must be able to communicate with every other IBGP router directly or indirectly to ensure proper route propagation.
Step-by-Step Breakdown:
Logical Full Mesh:
In an IBGP setup, routers do not re-advertise routes learned from one IBGP peer to another IBGP peer. This rule is in place to prevent routing loops within the AS.
To ensure full route propagation, a logical full mesh is required, meaning every IBGP router must peer with every other IBGP router in the AS. This can be done either directly or via route reflection or confederation.
Physical Full Mesh Not Required:
The physical topology does not need to be a full mesh, but the BGP peering relationships must form a logical full mesh. Techniques like route reflectors or BGP confederations can reduce the need for manual full-mesh peering.
Juniper
Reference: IBGP Configuration: IBGP logical full mesh requirements can be simplified using route reflectors to avoid the complexity of manually configuring many IBGP peers.

High availability and fast convergence are critical in data center networks to minimize downtime and maintain optimal performance. The following technologies contribute to achieving these goals: Graceful Restart (GR):
GR allows routers to maintain forwarding state during control plane restarts, ensuring continuous packet forwarding while minimizing network disruptions. Bidirectional Forwarding Detection (BFD):
BFD provides fast detection of path failures, allowing routing protocols to converge quickly by detecting link failures much faster than traditional timers. Link Aggregation Group (LAG):
LAG increases both redundancy and bandwidth by combining multiple physical links into one logical link, providing load balancing and fault tolerance.
Juniper
Reference: High Availability Techniques: These technologies are fundamental in ensuring rapid recovery and failover within Juniper-based data center environments.

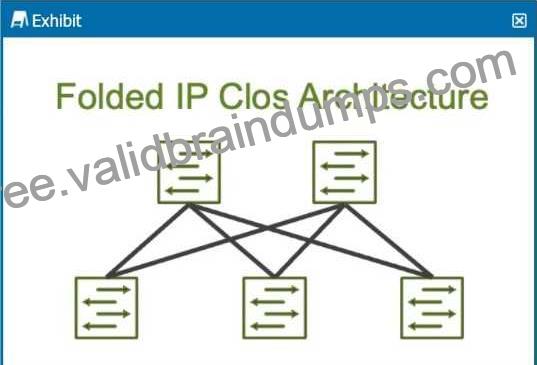

The exhibit shows a Folded IP Clos Architecture, which is also referred to as a 3-stage Clos network design. This architecture typically consists of two layers of switches: Spine Layer: The top row of switches.
Leaf Layer: The bottom row of switches.
Step-by-Step Breakdown:
Clos Architecture:
A 3-stage Clos network has two types of devices: spine and leaf. In this design, each leaf switch connects to every spine switch, providing a high level of redundancy and load balancing. Stage Explanation:
Stage 1: The first set of leaf switches.
Stage 2: The spine switches.
Stage 3: The second set of leaf switches.
The Folded Clos architecture shown here effectively “folds” the 3-stage design by combining the ingress and egress leaf layers into one, reducing it to two visible layers, but still maintaining the overall 3-stage architecture.
Juniper
Reference: IP Clos Architecture: The 3-stage Clos design is commonly used in modern data centers for high availability, redundancy, and scalability.

An IP fabric is a network topology designed to provide a scalable, low-latency architecture that is typically implemented in modern data centers. It uses spine and leaf switches and enables efficient traffic load sharing across the network.
Step-by-Step Breakdown:
Spine-Leaf Architecture:
Leaf Devices: These switches connect to servers and edge devices within the data center. Each leaf switch connects to every spine switch.
Spine Devices: These high-performance switches interconnect all the leaf switches. There are no direct connections between leaf switches or spine switches. This architecture ensures that any two endpoints within the fabric are only one hop away from each other, minimizing latency.
Traffic Load Sharing:
An IP fabric leverages Equal-Cost Multipath (ECMP) to distribute traffic evenly across all available paths between leaf and spine switches, providing effective load balancing. This ensures that no single link becomes a bottleneck and that traffic is distributed efficiently across the network.
Juniper Reference:
Juniper provides QFX Series switches optimized for IP fabric topologies, allowing for scalable deployments in modern data centers.
EVPN-VXLAN: Often used in IP fabrics to extend Layer 2 services across the fabric with Layer 3 underlay, enabling both efficient routing and bridging.

In a three-stage IP fabric (also known as a Clos fabric), traffic between any two points (ingress to egress) in the fabric is only two hops away.
Step-by-Step Breakdown:
Three-Stage IP Fabric:
Leaf Layer: Leaf switches connect directly to servers and edge devices.
Spine Layer: Spine switches provide connectivity between leaf switches but do not connect to each other directly.
Two-Hop Communication:
In this architecture, every leaf switch is connected to every spine switch. Therefore, when a packet enters the fabric via an ingress leaf switch, it is forwarded to a spine switch, which then directs the packet to the correct egress leaf switch. This path always involves exactly two hops: Ingress leaf → Spine → Egress leaf.
Benefits:
This consistent two-hop path ensures predictable latency and makes the network highly scalable while maintaining low complexity.
Juniper
Reference: IP Fabric Architecture: This two-hop property of Clos fabrics is a hallmark of spine-leaf designs, as supported by Juniper’s QFX and EX switches in data centers.

In modern data centers, the shift toward leaf-spine architectures is driven by the need to handle increased east-west traffic, which is traffic between servers within the same data center. Unlike traditional hierarchical data center designs, where most traffic was “north-south” (between users and servers), modern applications often involve server-to-server communication (east-west) to enable services like distributed databases, microservices, and virtualized workloads.
Leaf-Spine Architecture:
Leaf Layer: This layer consists of switches that connect directly to servers or end-host devices. These switches serve as the access layer.
Spine Layer: The spine layer comprises high-performance switches that provide interconnectivity between leaf switches. Each leaf switch connects to every spine switch, creating a non-blocking fabric that optimizes traffic flow within the data center.
East-West Traffic Accommodation:
In traditional three-tier architectures (core, aggregation, access), traffic had to traverse multiple layers, leading to bottlenecks when servers communicated with each other. Leaf-spine architectures address this by creating multiple equal-cost paths between leaf switches and the spine. Since each leaf switch connects directly to every spine switch, the architecture facilitates quick, low-latency communication between servers, which is essential for east-west traffic flows.
Juniper’s Role:
Juniper Networks provides a range of solutions that optimize for east-west traffic in a leaf-spine architecture, notably through:
QFX Series Switches: Juniper’s QFX series switches are designed for the leaf and spine architecture, delivering high throughput, low latency, and scalability to accommodate the traffic demands of modern data centers.
EVPN-VXLAN: Juniper uses EVPN-VXLAN to create a scalable Layer 2 and Layer 3 overlay network across the data center. This overlay helps enhance east-west traffic performance by enabling network segmentation and workload mobility across the entire fabric.
Key Features That Support East-West Traffic:
Equal-Cost Multipath (ECMP): ECMP enables the use of multiple paths between leaf and spine switches, balancing the traffic and preventing any one path from becoming a bottleneck. This is crucial in handling the high volume of east-west traffic.
Low Latency: Spine switches are typically high-performance devices that minimize the delay between leaf switches, which improves the efficiency of server-to-server communications.
Scalability: As the demand for east-west traffic grows, adding more leaf and spine switches is straightforward, maintaining consistent performance without redesigning the entire network.
In summary, the leaf-spine architecture is primarily designed to handle the increase in east-west traffic within data centers, and Juniper provides robust solutions to enable this architecture through its switch platforms and software solutions like EVPN-VXLAN.

A generated route in Junos OS is configured under the [edit routing-options] hierarchy.
Step-by-Step Breakdown:
Generated Routes:
A generated route is created based on the presence of more specific routes in the routing table. It acts as a summary route and is generated when any of its contributing routes are active. This is commonly used to create aggregate routes in OSPF, BGP, or other protocols.
Configuration Hierarchy:
The configuration for generated routes is placed under [edit routing-options], where other static and routing policies are also defined.
Command Example:
set routing-options generate route 10.10.0.0/16
Juniper Reference:
Routing Options: Juniper routers use the routing-options hierarchy to configure generated routes and other static routing behaviors.

IBGP (Internal Border Gateway Protocol) is used to exchange routing information between routers within the same AS (Autonomous System).
Step-by-Step Breakdown:
TTL of 255:
By default, IBGP sessions are established with a TTL (Time to Live) value of 255. This allows IBGP neighbors to communicate over multiple hops within the AS without requiring any additional configuration.
Full Mesh Requirement:
IBGP requires a logical full mesh between all IBGP routers to ensure that routing information is fully distributed within the AS. Since IBGP does not propagate routes learned from one IBGP peer to another by default, a full mesh topology is needed unless route reflectors or BGP confederations are used.
Juniper Reference:
IBGP Full Mesh: Juniper recommends using route reflectors in large networks to simplify IBGP full-mesh requirements.
